QL65I7SABC

产品描述：
QL65I7S-A/B/C is a MOCVD grown 650nm band InGaAlP laser diode with quantum well structure.
It's an attractive light source, with a typical light output power of 30mW for optoelectronic devices such as DVD-R/+R, DVD-Recorder, High Speed DVD-player and Inderstrial Bar Code Scanner.
产品特色：
➢ Visible Light Output : λp = 658 nm(typ.)
➢ Optical Power Output : 30mW CW, 50mW PULSE(Tp = 0.5㎲, Duty = 50%)

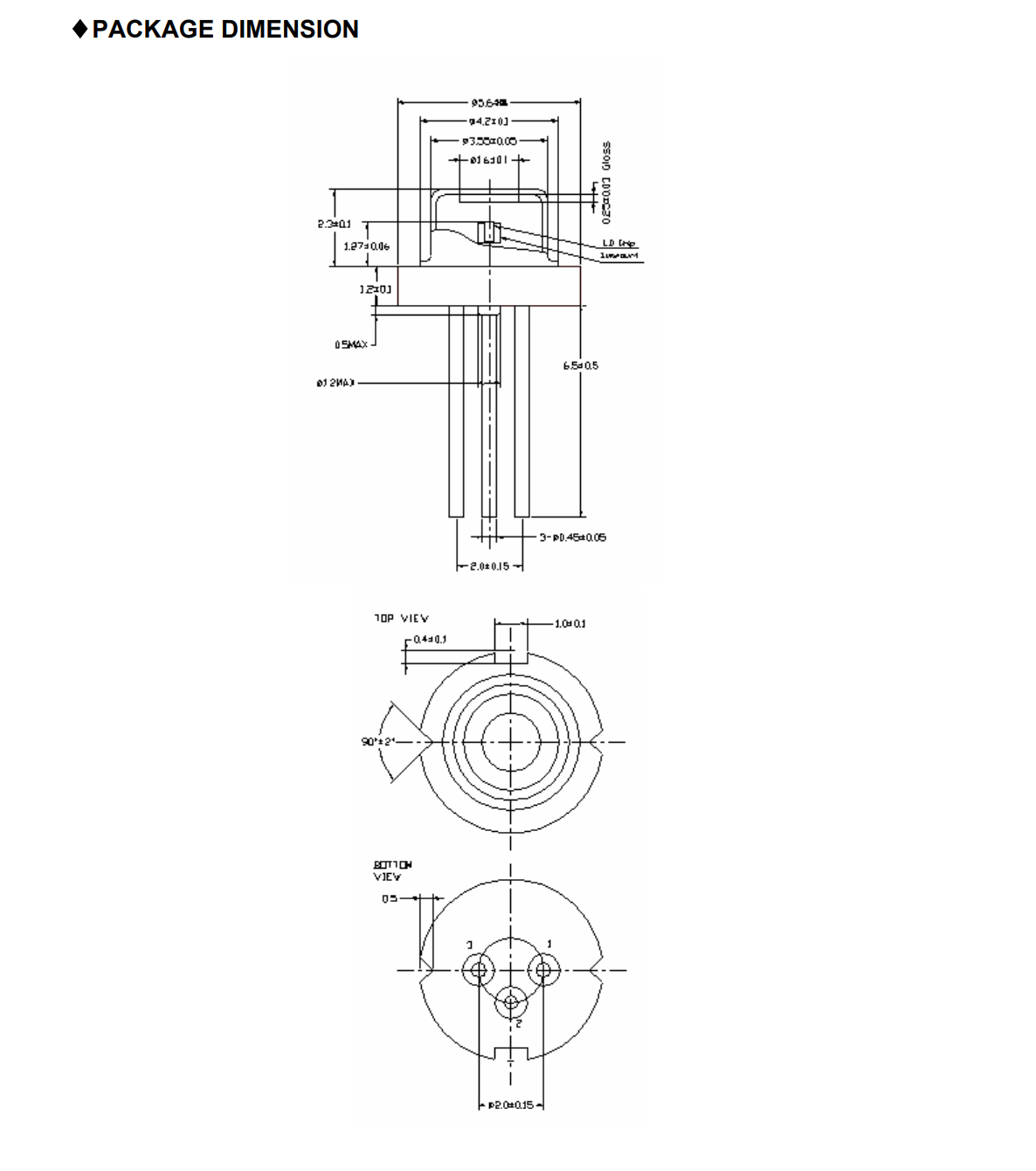

➢ Package Type : TO-18 (5.6mmφ)
➢ Built-in Photo Diode for Monitoring Laser Diode
应用范围：
➢ Standard speed DVD-R/+R
➢ DVD-RW/+RW
➢ DVD-RAM
