808nm 170mW narrow linewidth Wavelength Stabilized Laser
产品描述:
808nm Wavelength Stabilized Laser is a single mode, miniature laser in a standard TO package.
The laser has a very low temperature dependence and precise center wavelength over the locked region.
The narrow linewidth and long coherence length from a standard TO packaged laser enables many applications.
产品特色:
➢ Wavelength stability(<0.015nm/ºC)
➢ Single frequency
➢ Coherence length (>2m)
➢ Hermetically sealed
➢ Custom wavelengths available
应用范围:
Diode pumping, photodynamic therapy, bio-medical instrumentation, graphic arts, and analytical instrumentation.

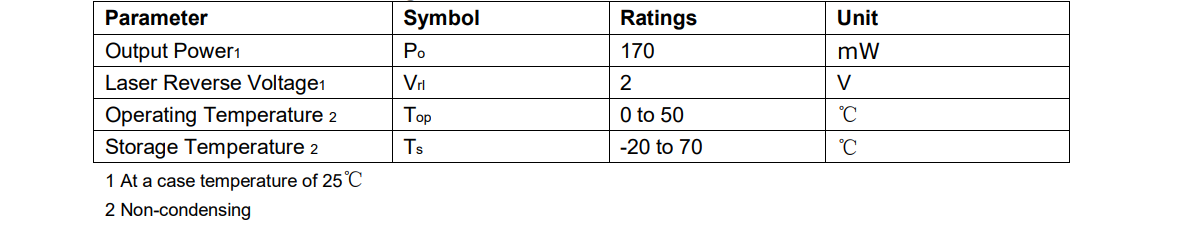

极限工作条件:

操作规范:

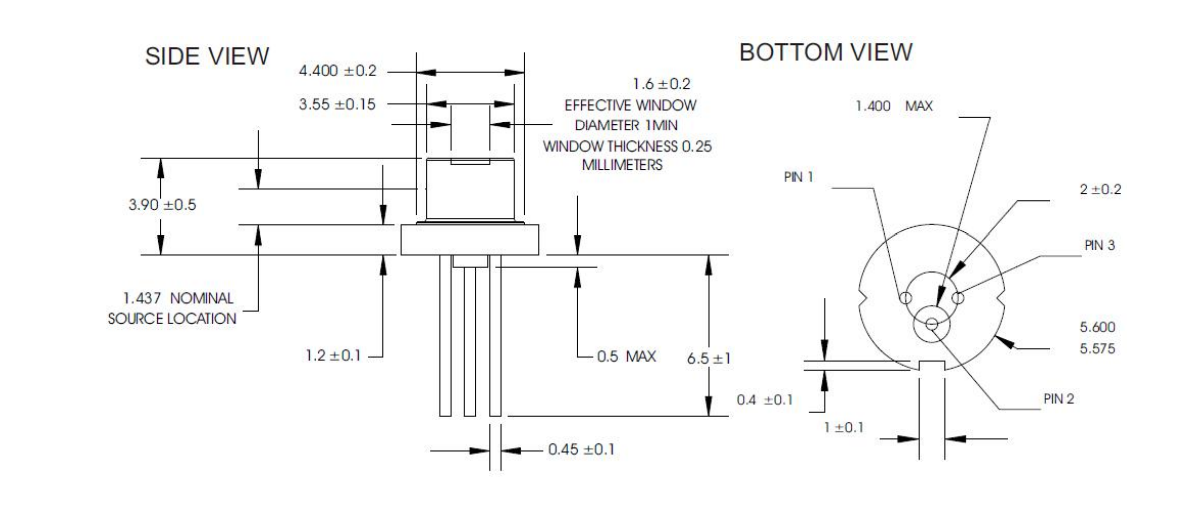

外形:

针脚排布:
