785nm 600mW narrow linewidth Wavelength Stabilized Butterfly Laser
产品描述:
785nm, 600mW Wavelength Stabilized Laser is a multi-mode, miniature laser in a butterfly, fiber-coupled package with integrated TEC.
The stabilization is achieved using the Locker .
The laser has a very low temperature dependence And precise center wavelength over the locked region.
产品特色:
➢ Spectral linewidth (0.15nm)
➢ Wavelength stability (0.01nm/ºC)
➢ 100um MM fiber Butterfly package
➢ Custom wavelengths available
应用范围:
Raman spectroscopy, sensing, metrology, medical, graphic arts,
military, and analytical instrumentation.

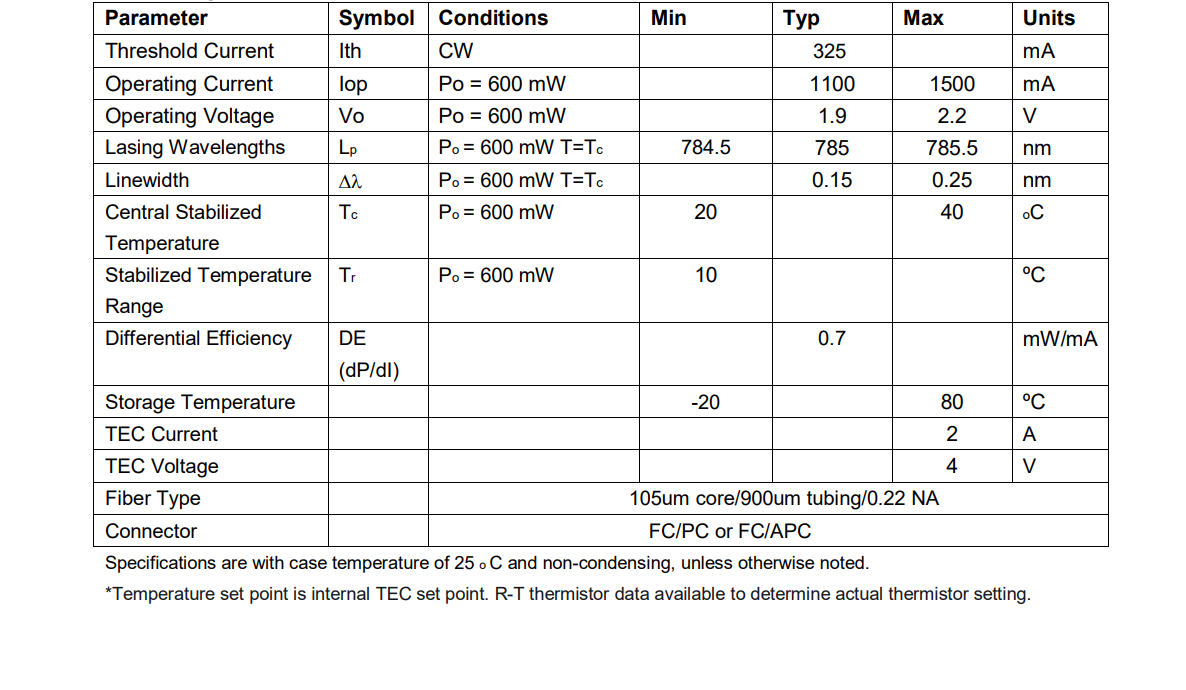

操作规范:

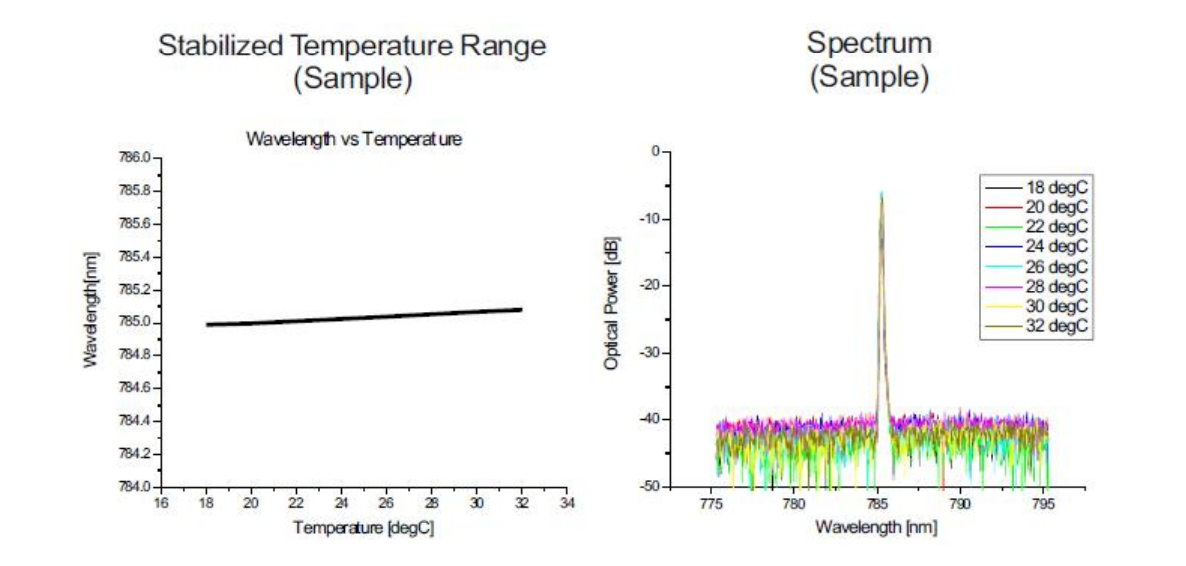

极限工作条件:

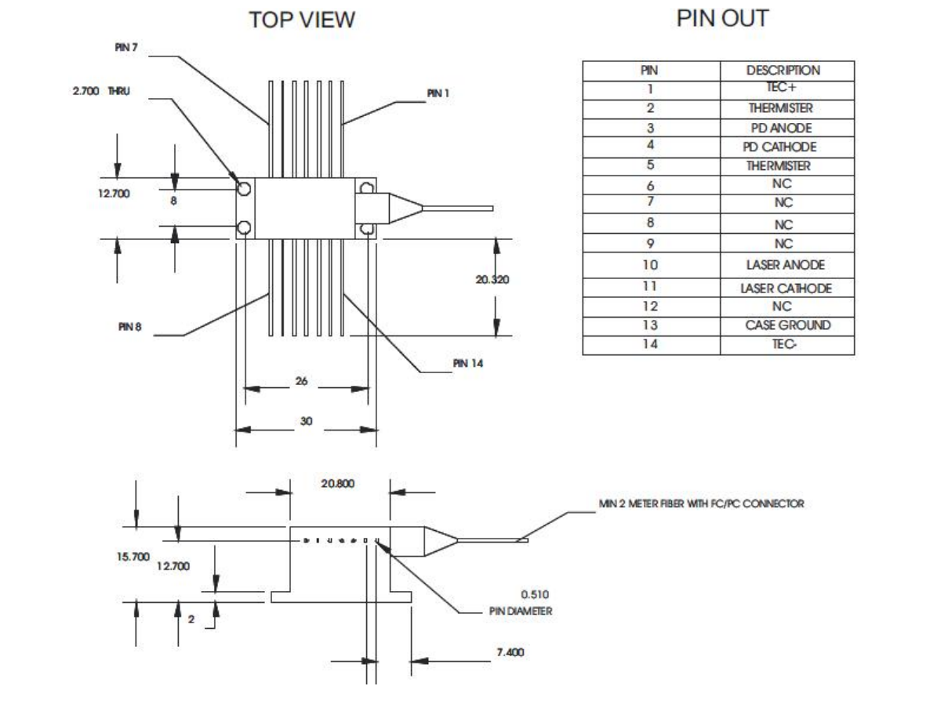

外形与针脚排布:
