685nm 45mW Wavelength Stabilized Laser
产品描述:
685nm Wavelength Stabilized Laser is a single mode, miniature laser in a standard TO package.
The laser has a very low temperature dependence and precise center wavelength over the locked region.
The narrow linewidth and long coherence length from a standard TO packaged laser enables many applications.
产品特色:
➢ Wavelength stability (<0.015nm/ºC)
➢ Single frequency
➢ Coherence length (>2m)
➢ Hermetically sealed
➢ Custom wavelengths available
应用范围:
Raman spectroscopy, flow cytometry, blood flow, metrology , bio instrumentation, graphic arts, analytical instrumentation,
sensing, and data storage .

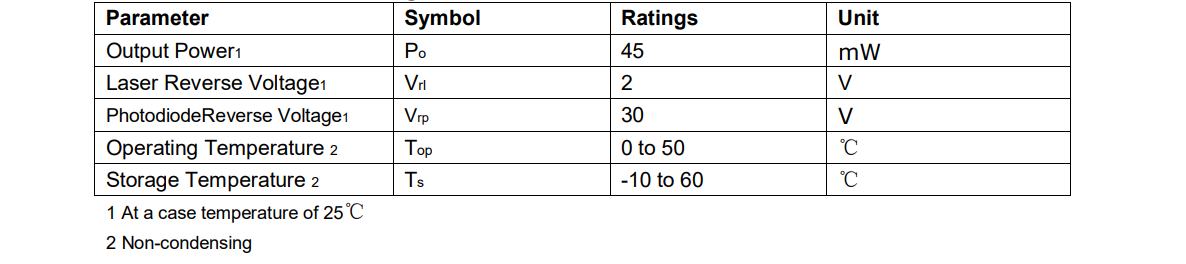

极限工作条件:

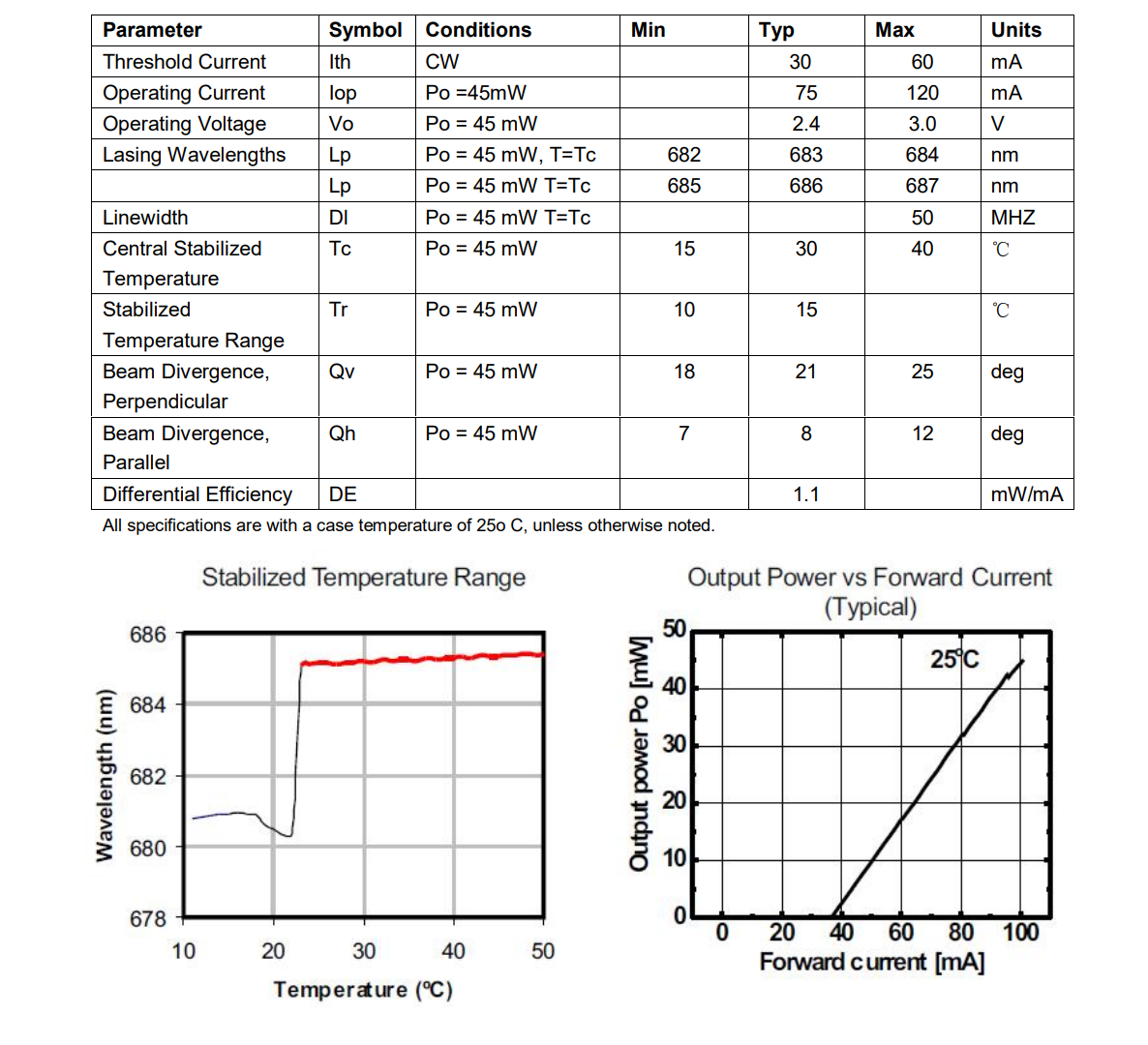

操作规范:

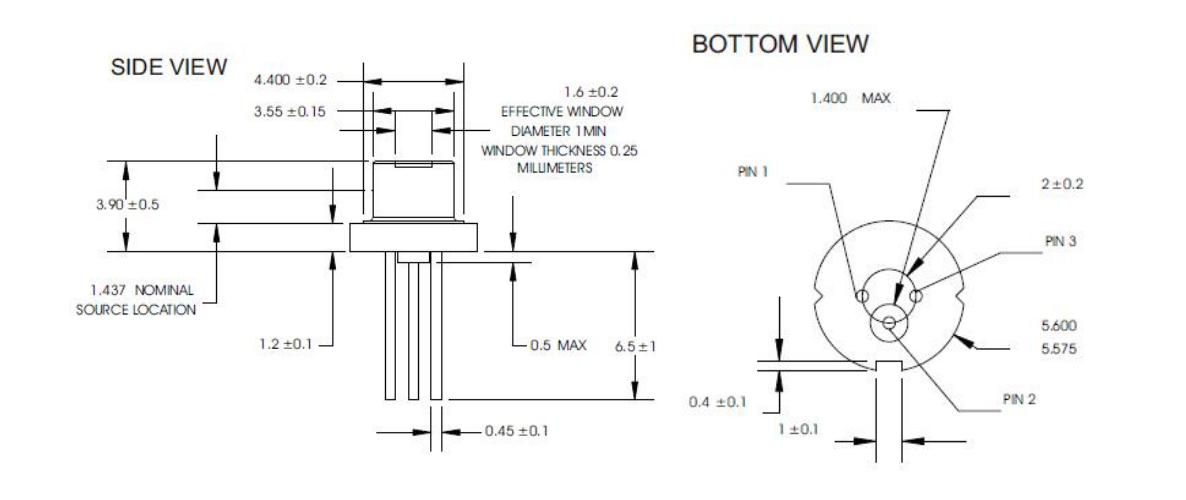

外形:

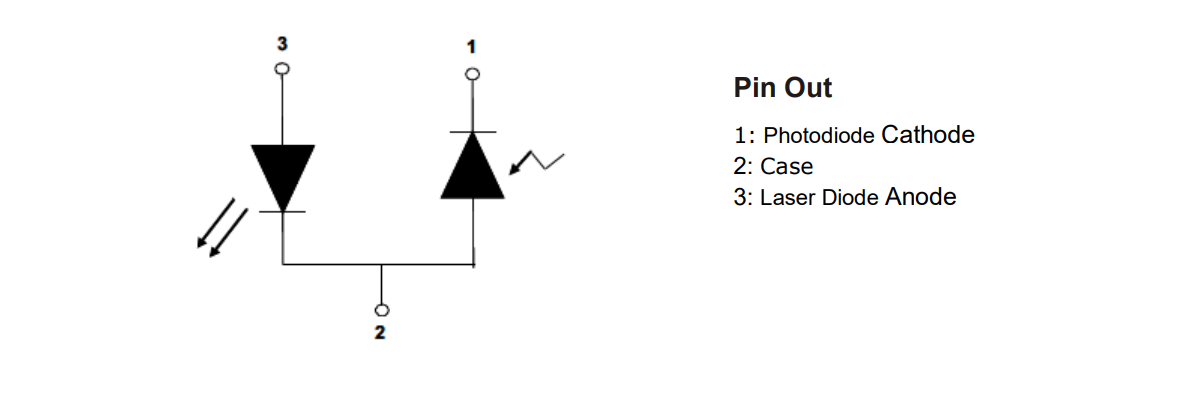

针脚排布:
