1550nm FP
产品描述:
The FP-1550-T5-5-A-A-A of Multi-Quantum Well (MQW) Fabry-Perot (FP) lasers are well suited for lowcost high-speed transmitters.
The devices feature high output power, and wide operating temperature range.
Their uncooled, hermetically sealed, TO-56 style packages are a cost-effective means of providing a lownoise light source for intermediate-reach and longreach optical transmission applications.
产品特色:
➢ Advanced Multiple Quantum Well (MQW) Laser Design
➢ Cost-effective Uncooled Laser Technology
➢ 5.6-mm TO-style package
➢ -40° to 85° C operating temperature range
应用范围:
➢ CATV return path

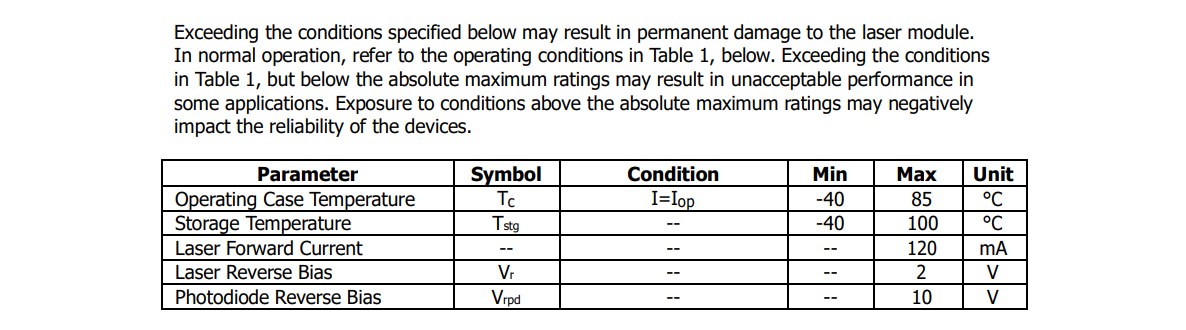

极限工作条件:

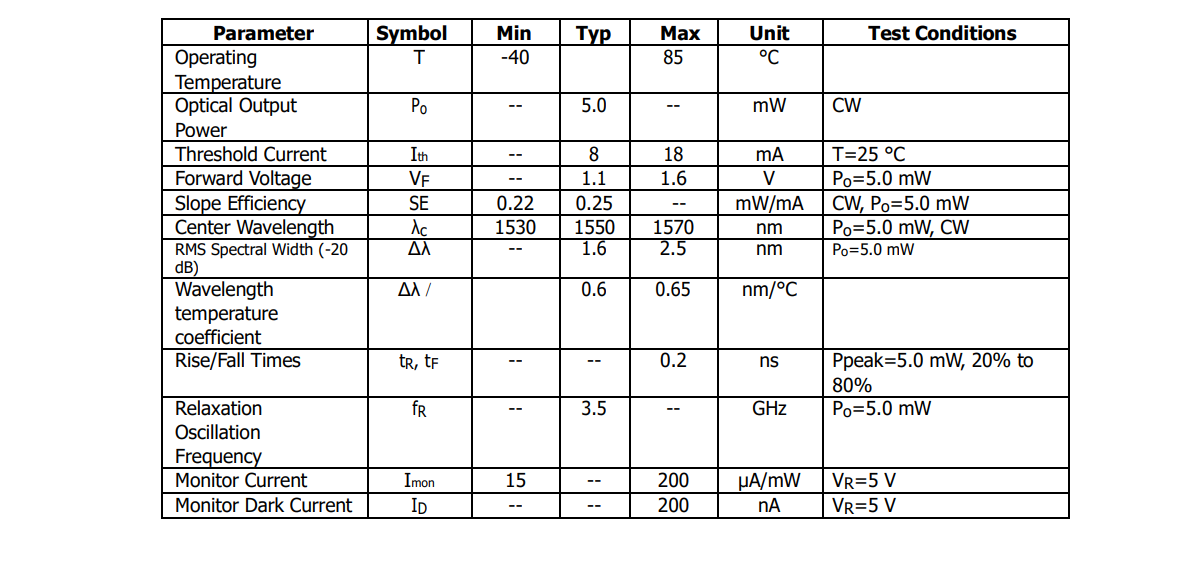

光电特性:

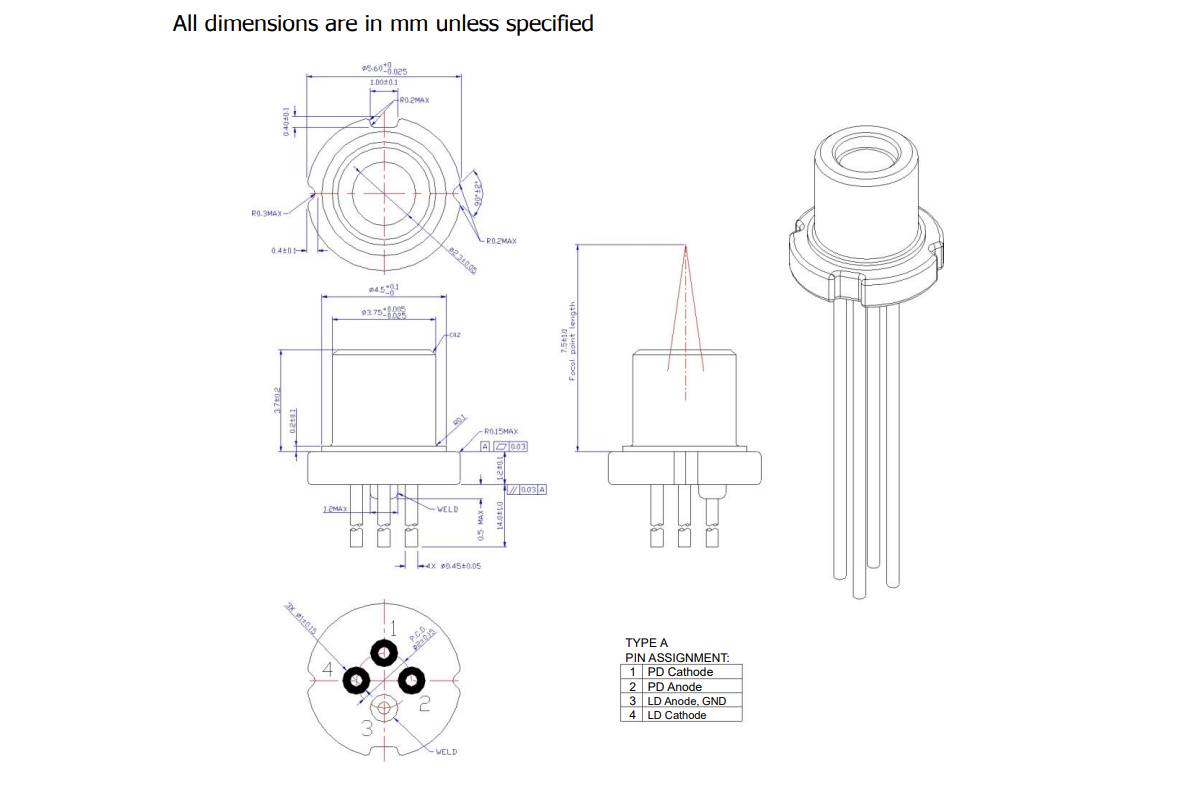

外形与针脚排布:

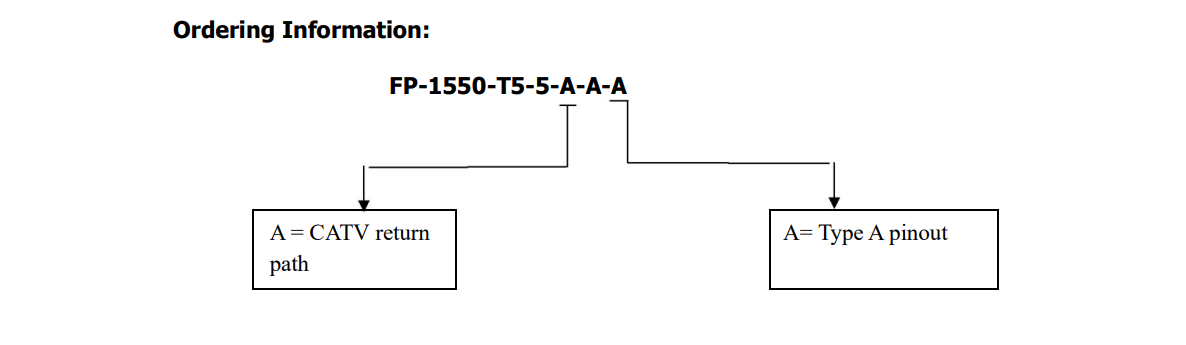

订购信息:

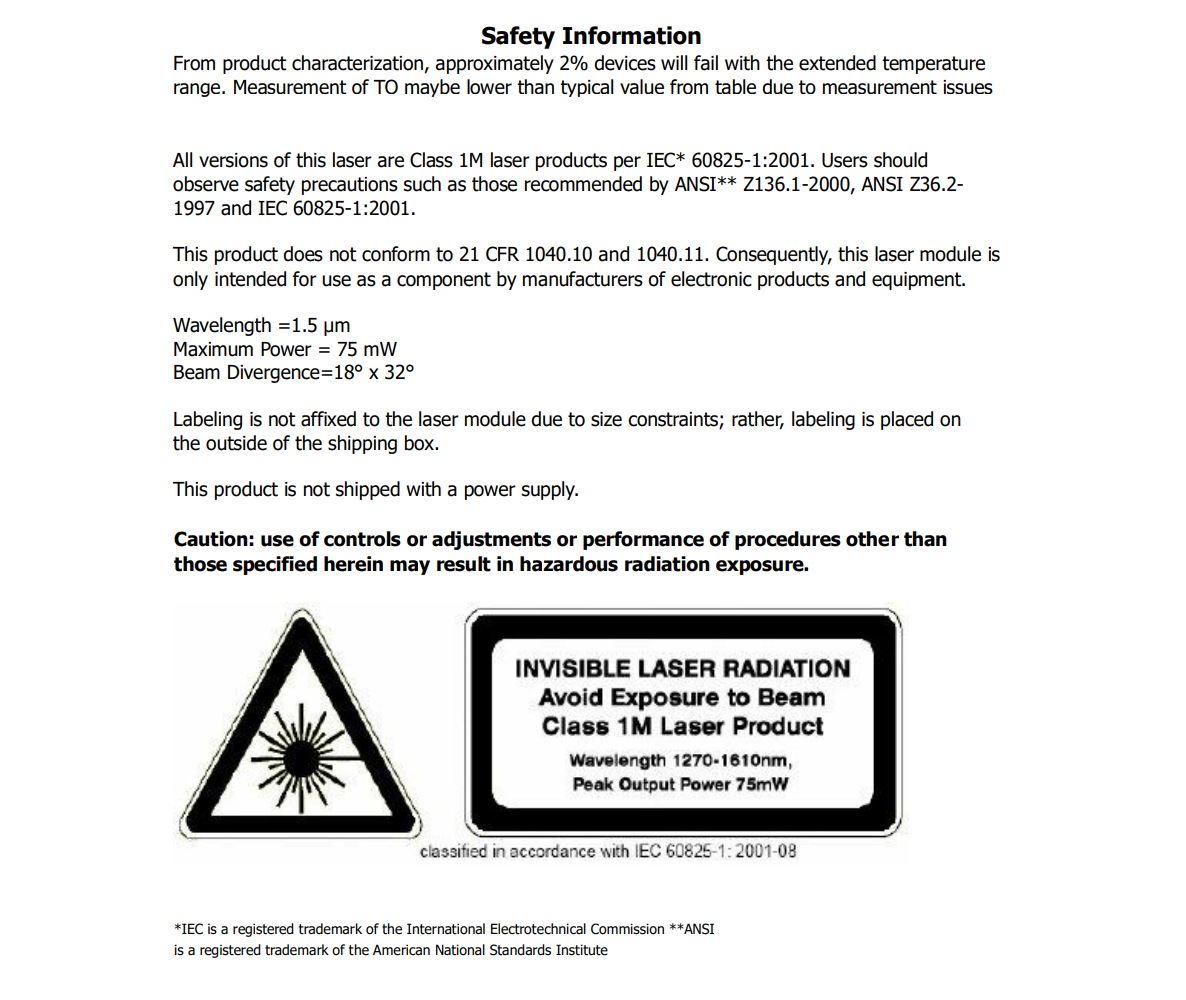

安全信息:
