1310nm FP
产品描述:
The FP-1310-T5-6-2.5-W-A-A of Multi-Quantum Well (MQW) Fabry-Perot (FP) lasers are well suited for low-cost high-speed transmitters.
The devices feature high output power, wide operating temperature range, and high side mode suppression.
Their uncooled, hermetically sealed, TO-56 style packages are a cost-effective means of providing a low-noise light source for intermediate-reach and long-reach digital transmission applications.
产品特色:
➢ Advanced Multiple Quantum Well (MQW) Fabry-Perot (FP) Laser Design
➢ Cost-effective Uncooled Laser Technology
➢ 5.6-mm TO-style package
应用范围:
➢ CATV return path
➢ CATV Forward path
➢ CDMA Application
➢ WCDMA Application

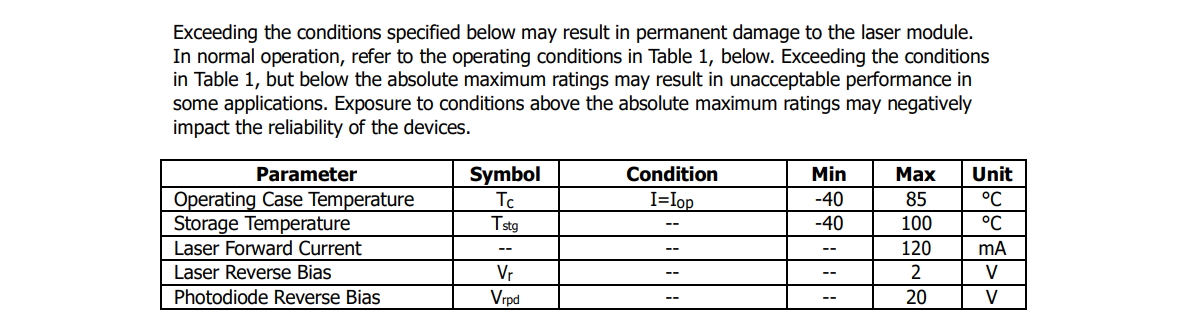

极限工作条件:

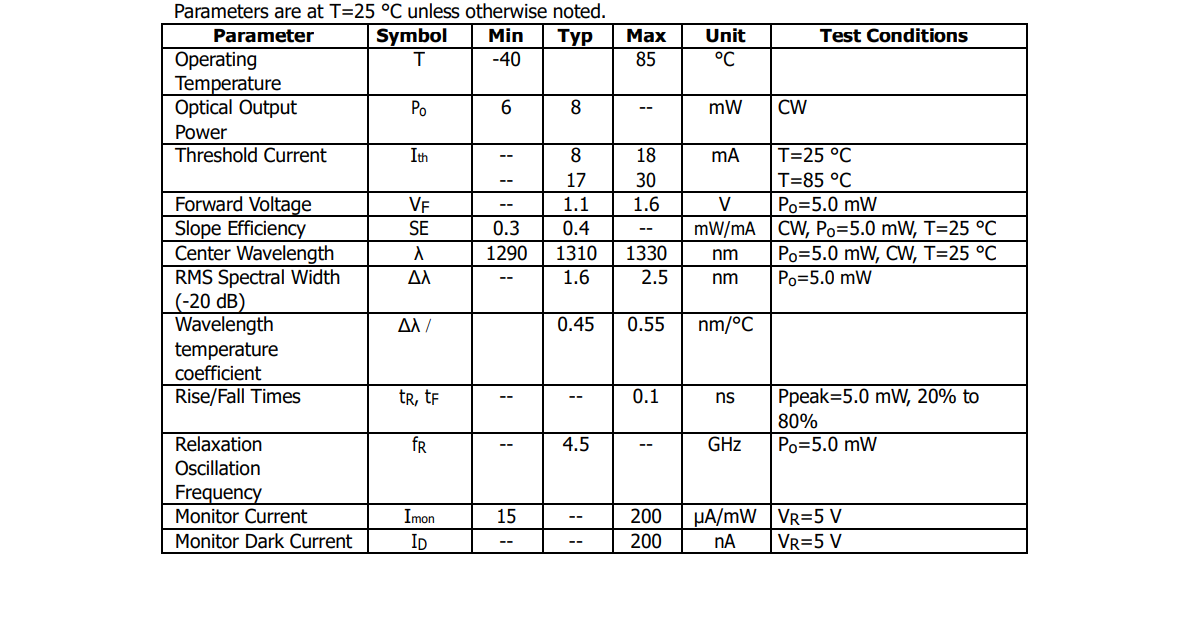

光电特性:

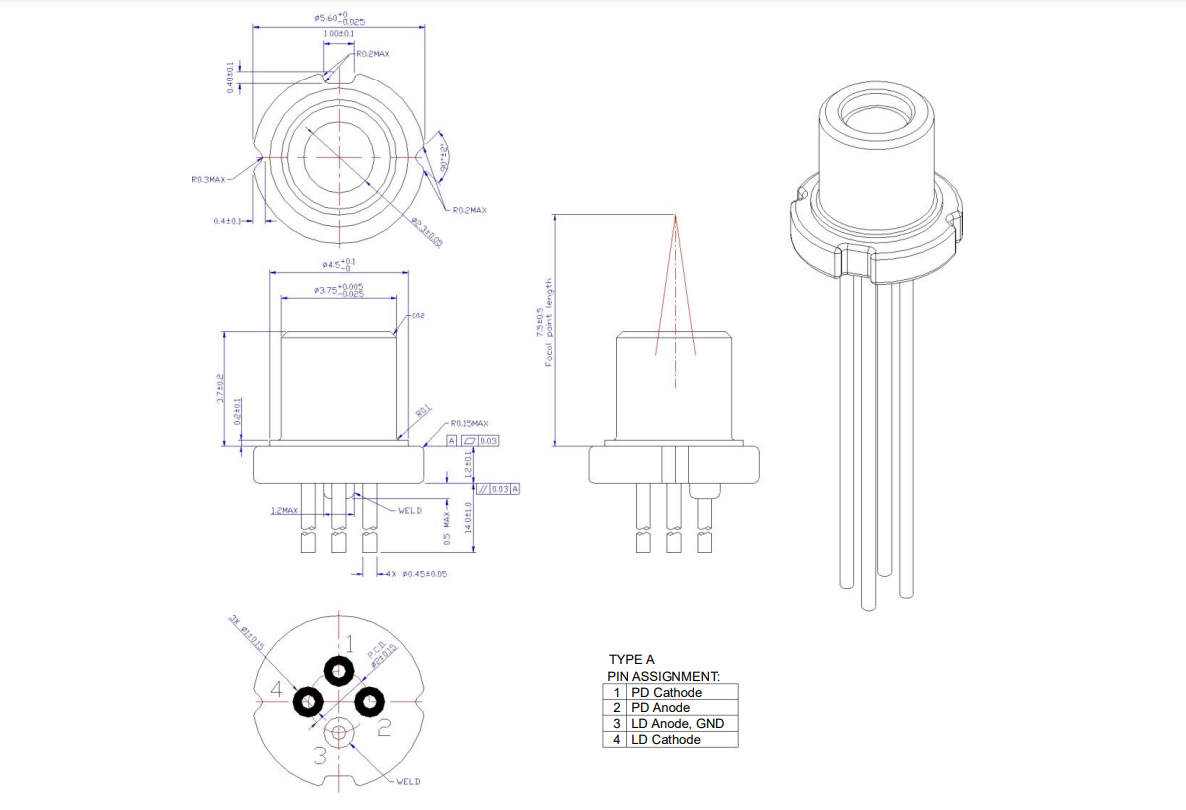

外形与针脚排布:

订购信息:
